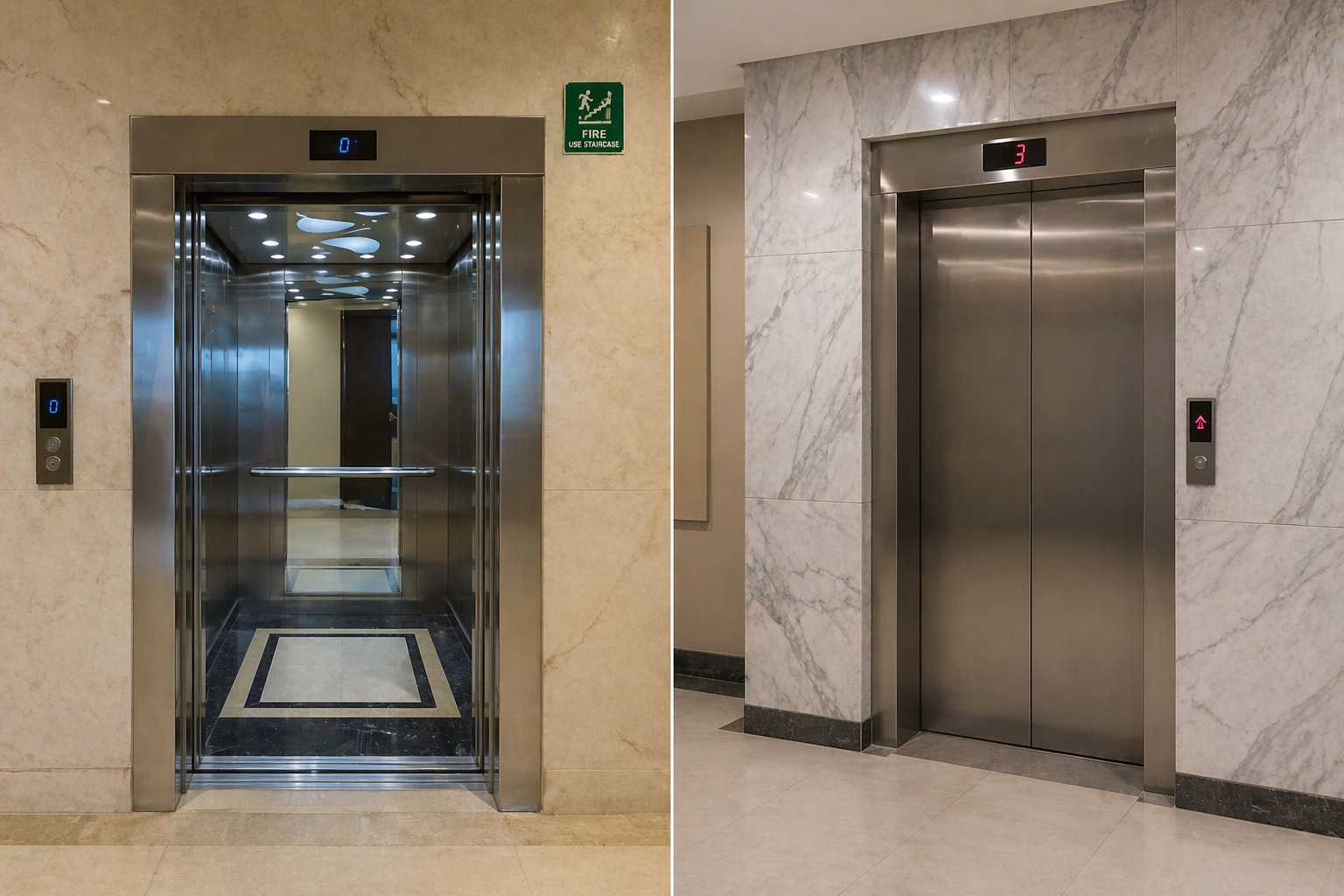

AJSIM's Passenger Lifts are engineered for high-speed vertical transportation in multi-story industrial facilities, warehouses, and commercial buildings. Built with advanced safety systems, smooth operation, and exceptional reliability.
1000 - 2500 KG
13-33 Persons
0.63 - 1.6 m/s
Customizable
Upto 30 Floors
100+ Meters
3-Phase, 415V AC
50 Hz / 60 Hz
| Component | Specification | Standard |
|---|---|---|
| Cabin Material | Stainless Steel / Mild Steel with powder coating | IS 2062 |
| Drive System | Gearless Motor with advanced controller | ISO 9927 |
| Safety Brakes | Dual electromagnetic fail-safe brakes | EN 81 |
| Rope Type | 8mm Steel Wire Rope (1770 N/mm²) | IS 2268 |
| Guide Rails | T-type or Omega-type, hardened steel guides | IS 3177 |
| Door System | Automatic sliding doors with sensors | IS 807 |
| Control Panel | IP-65, CNC controlled with VFD | IS 2062 |
| Load Cells | Precision load cells with overload protection | ISO 9001 |
| Emergency System | Battery backup, emergency phone, alarm bell | EN 81 |
| Maintenance Access | Machine room design for easy servicing | ISO 9927-1 |
Gearless motors with advanced vibration damping ensure whisper-quiet, smooth passenger experience even at high speeds.
Dual brakes, load sensors, emergency backup power, automatic door sensors, and emergency communication systems.
Speeds up to 1.6 m/s with variable frequency drives ensure quick, energy-efficient vertical transportation.
Modular design with dedicated machine room, easily accessible components, and complete documentation for quick repairs.
LED lighting, regenerative braking, and optimized motor control systems reduce power consumption by up to 35%.
Advanced CNC controller with destination control systems, remote monitoring, and predictive maintenance alerts.
Independent fail-safe brakes on both sides of the cabin ensure immediate stopping in case of power failure or emergency.
Built-in telephone system and microphone for immediate communication with rescue personnel during emergencies.
Battery-backed emergency lighting and door opening system to ensure passengers can safely exit the cabin.
Infrared sensors prevent door closure when obstruction detected, with manual override capabilities.
Precision load cells with alarm system indicate overload conditions and prevent lift operation.
Remote monitoring system tracks lift performance in real-time with predictive maintenance alerts.
For efficient personnel and small equipment transport across multiple floors in high-bay warehouses.
Safe vertical access for workers in manufacturing and processing plants with multiple levels.
Elevators for office complexes, shopping centers, and hospitality establishments with passenger comfort.
Specialized designs for hospitals, medical centers, and diagnostic facilities with strict safety compliance.
Let our engineering team design the perfect passenger lift solution for your facility's unique requirements.
